PointlineJS is an SVG based JS library for drawing tree diagrams. It relies on Treant-JS, Raphael for handling SVG and animations, JQuery.

Installation

You can get the latest release and the type definitions using npm:

npm install pointlinejs --save

Quick start

1. Import in your project PointlineJS:


            import { PointlineJS } from "pointlinejs";
            const simple_chart_config = {
              chart: {
                  container: "#tree-simple"
              },

              nodeStructure: {
                  text: { name: "Parent node" },
                  children: [
                      {
                          text: { name: "First child" }
                      },
                      {
                          text: { name: "Second child" }
                      }
                  ]
              }
            };
            const test = new PointlineJS(simple_chart_config);
            test.getTree();
            test.draw();

2. Add div in your html. Example based on index.html:


            <!DOCTYPE html>
            <html>
              <head>
                <meta charset="utf-8" />
                <title>PointlineJS Example</title>
              </head>
              <body>
                  <div id="tree-simple" style="height: 600px; width: 900px"></div>
              </body>
            </html>

Examples

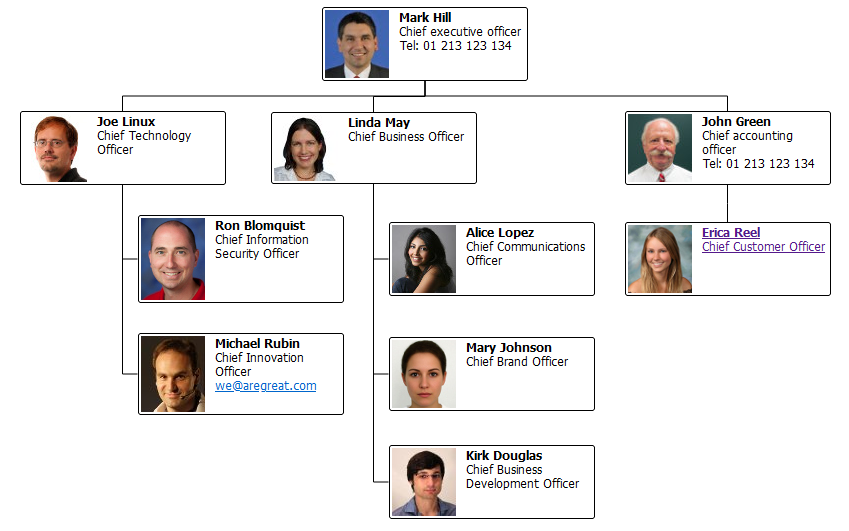

Basic example

Organizational chart of the company structure along with pictures and basic information about each member.

View example

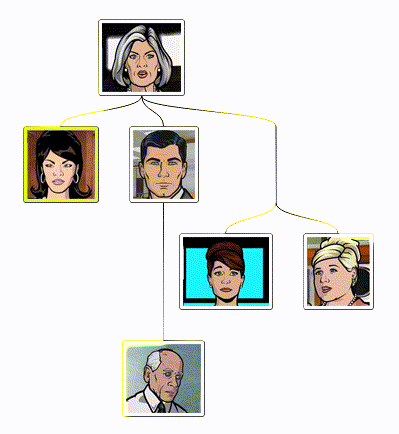

Collapsable

Here is an example that shows how to make an interactive, collapsible chart.

View example

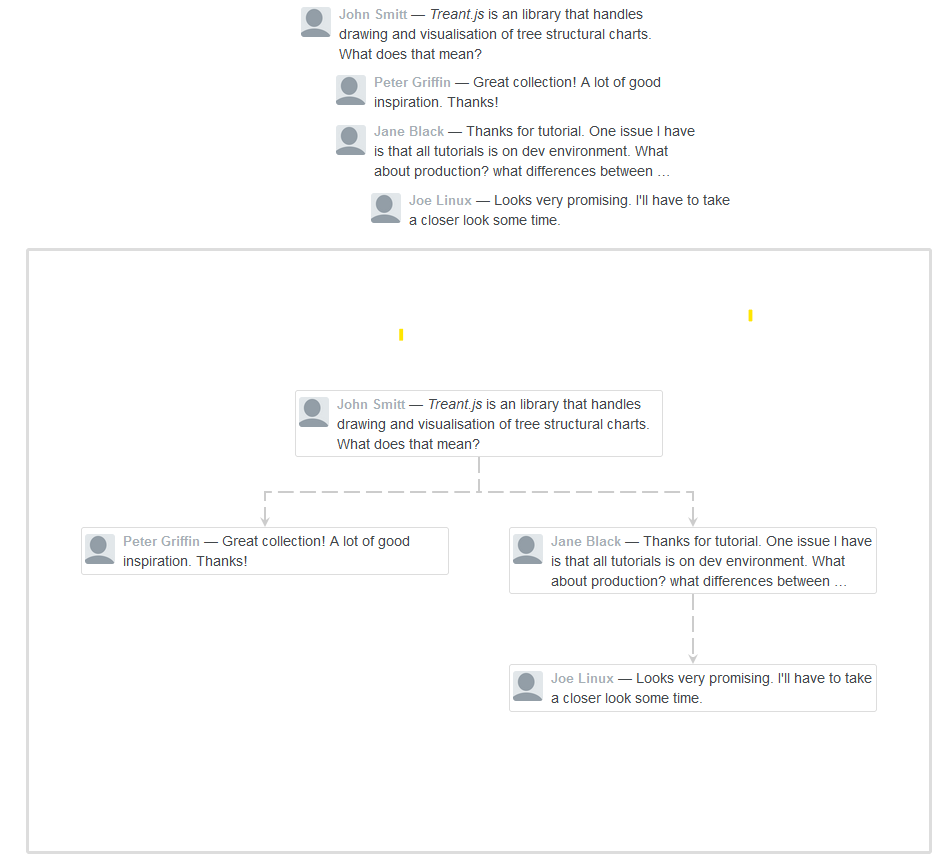

Comments

Treant can be SEO friendly. This example shows how a static HTML can be used for node content.

View example

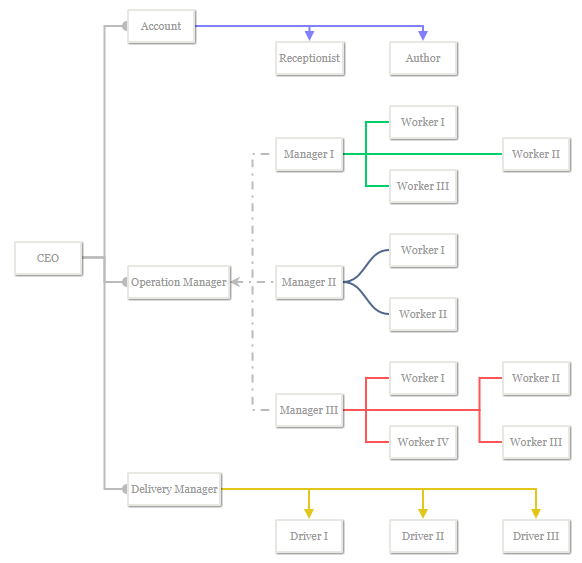

Connectors

Using vendor/raphael.js as a SVG drawing library, all types and styles for connectors are possible.

View example

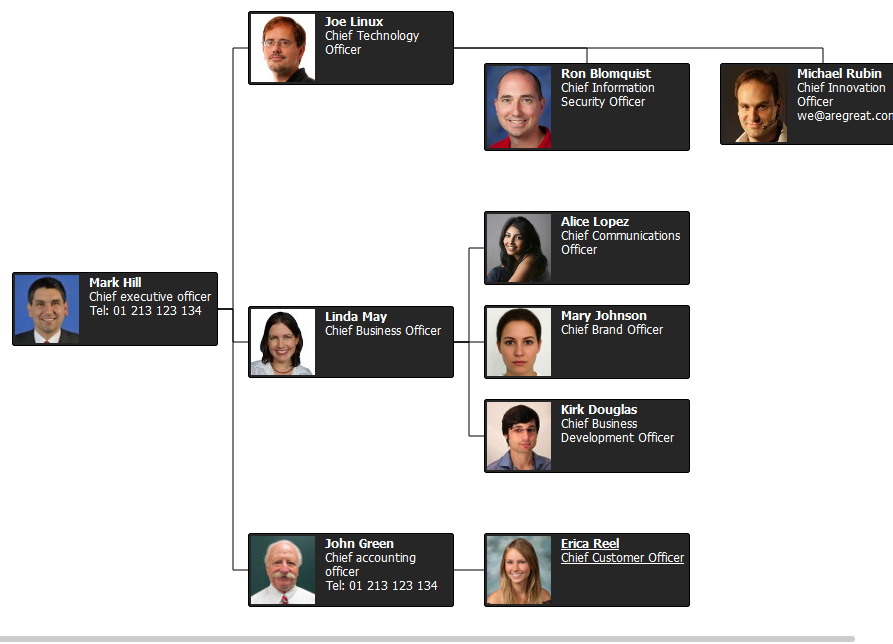

Custom color plus scrollbar

Root node can be positioned in all four mayor directions. A scrollbar is only displayed where needed.

View example

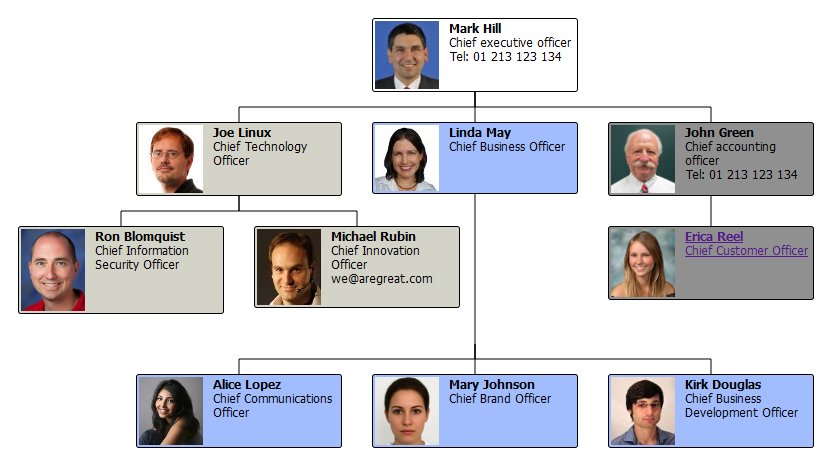

Custom colored

This is a demo displaying how the use of colors can represent each department in the company structure. It is simple and easy to understand. Anyone could easily visualize their departments in this type of chart.

View example

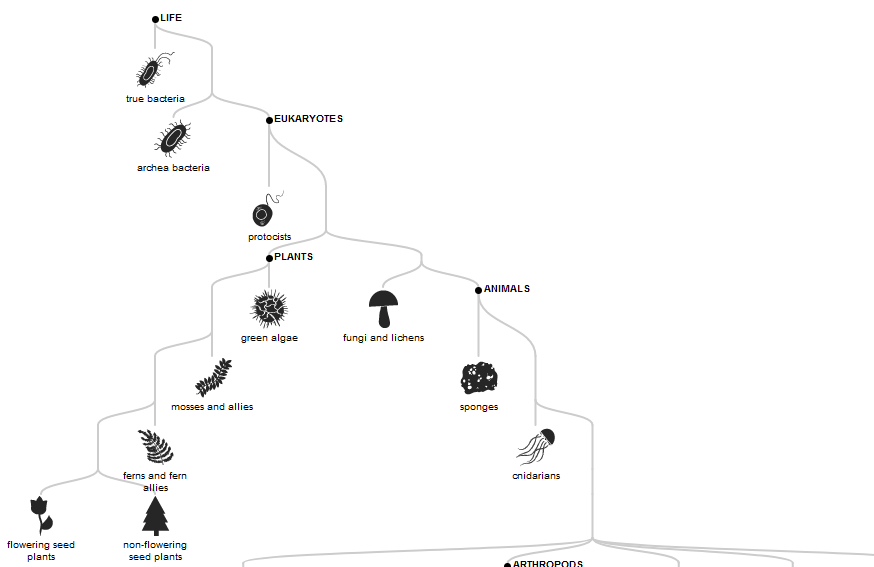

Evolution tree

This is a very simple and effective representation of an evolution branch. It shows the use of scroller

View example

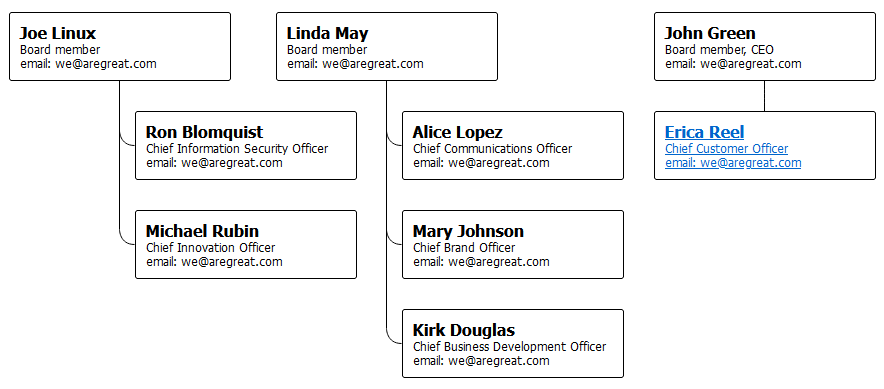

No parent

Root nodes are optional and can easily be omitted.

View example

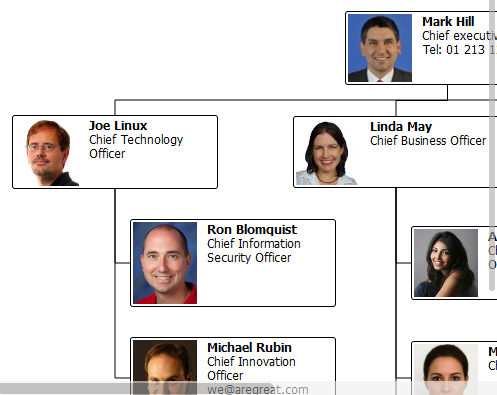

Simple scrollbar

When having trouble with a big and more complex chart, a good looking scrollbar can be used to access hidden content.

View example
Super simple

An extra simple example. Just to get you started.

View example

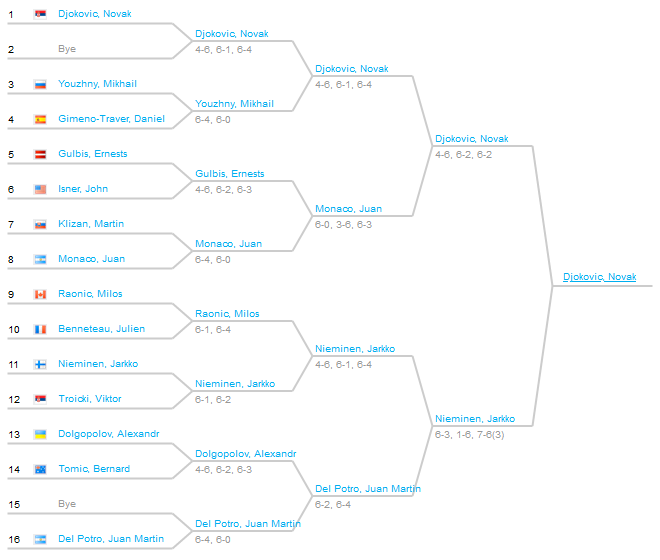

Tennis draw

Tennis results are displayed in a classic tree structure. Tree structure is an adequate method of representation for any type of bracketed events.

View example

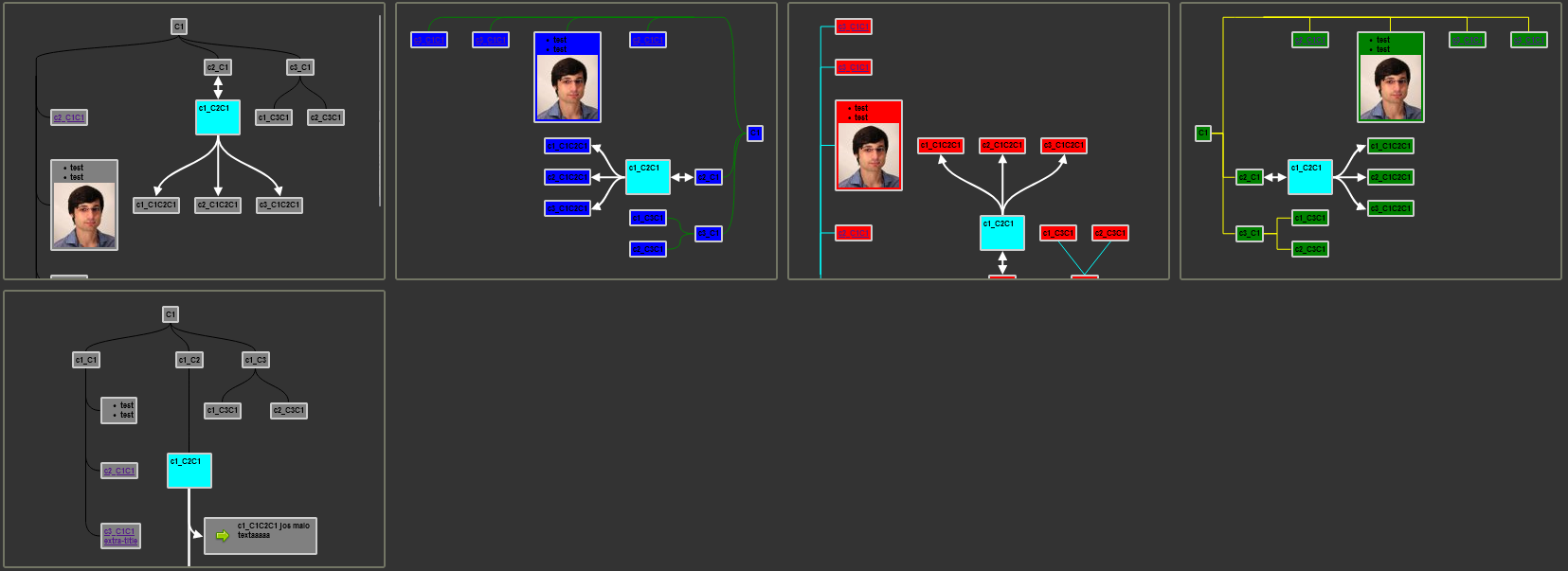

Test ground

Test multiple tree on one page

View example

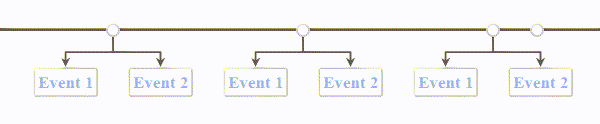

Timeline

An interactive timeline can be made.

View example

Support

If you are experience any kind of issues we will be happy to help. You can report an issue using the issues page

If you want to share your thoughts with the development team or join us you will be able to check issues or create pull request.
